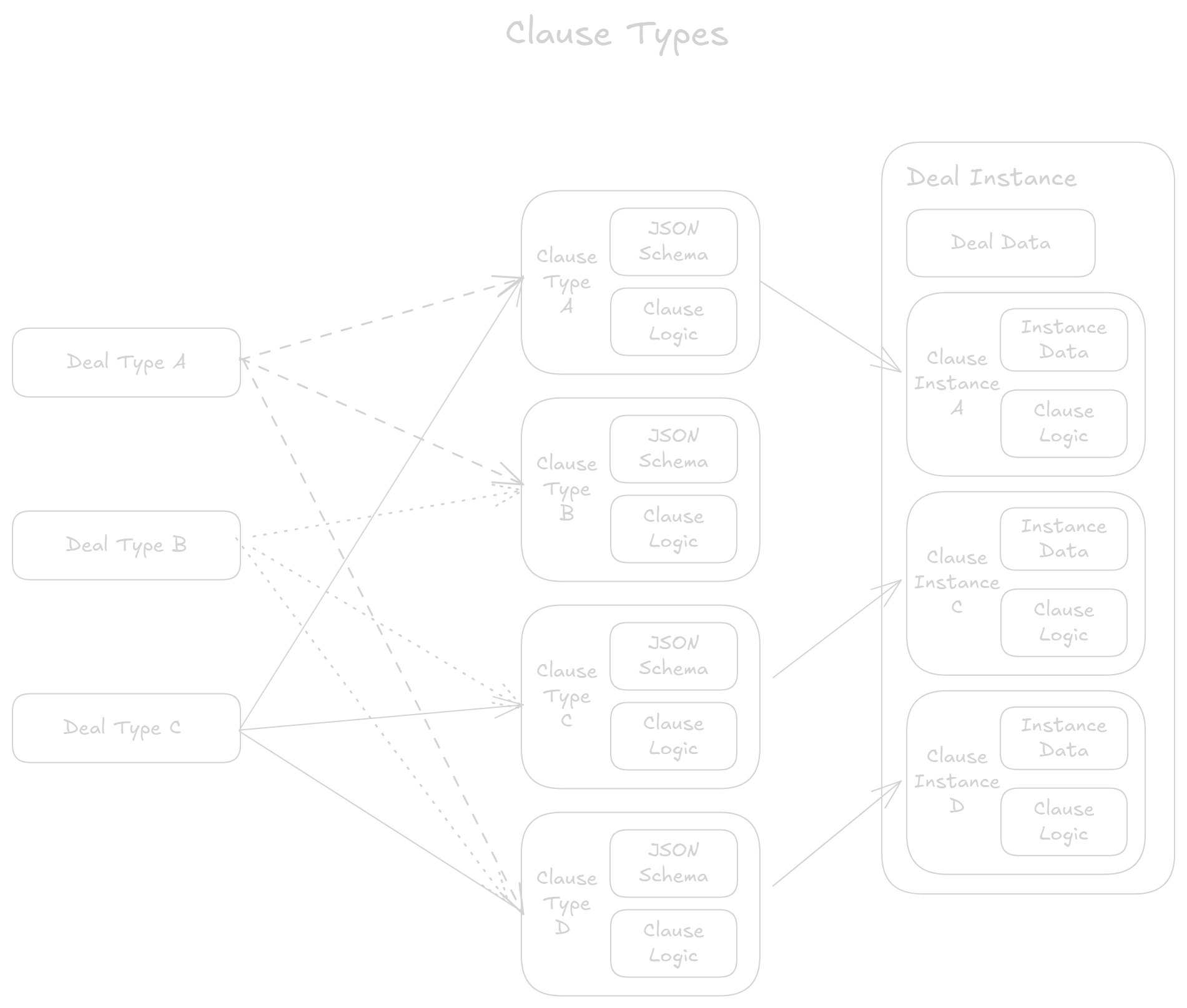

Clause Type Conceptual Diagrams

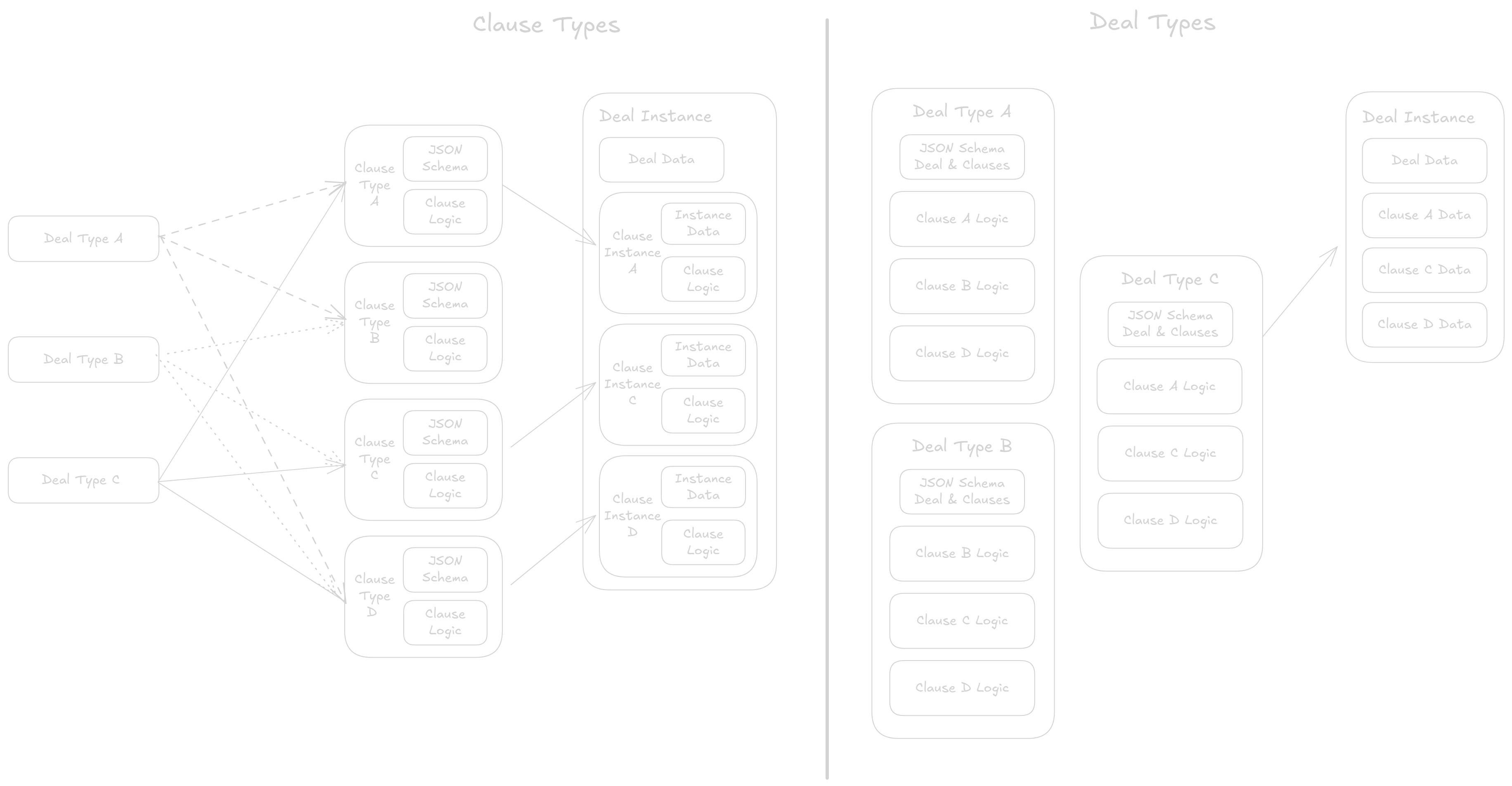

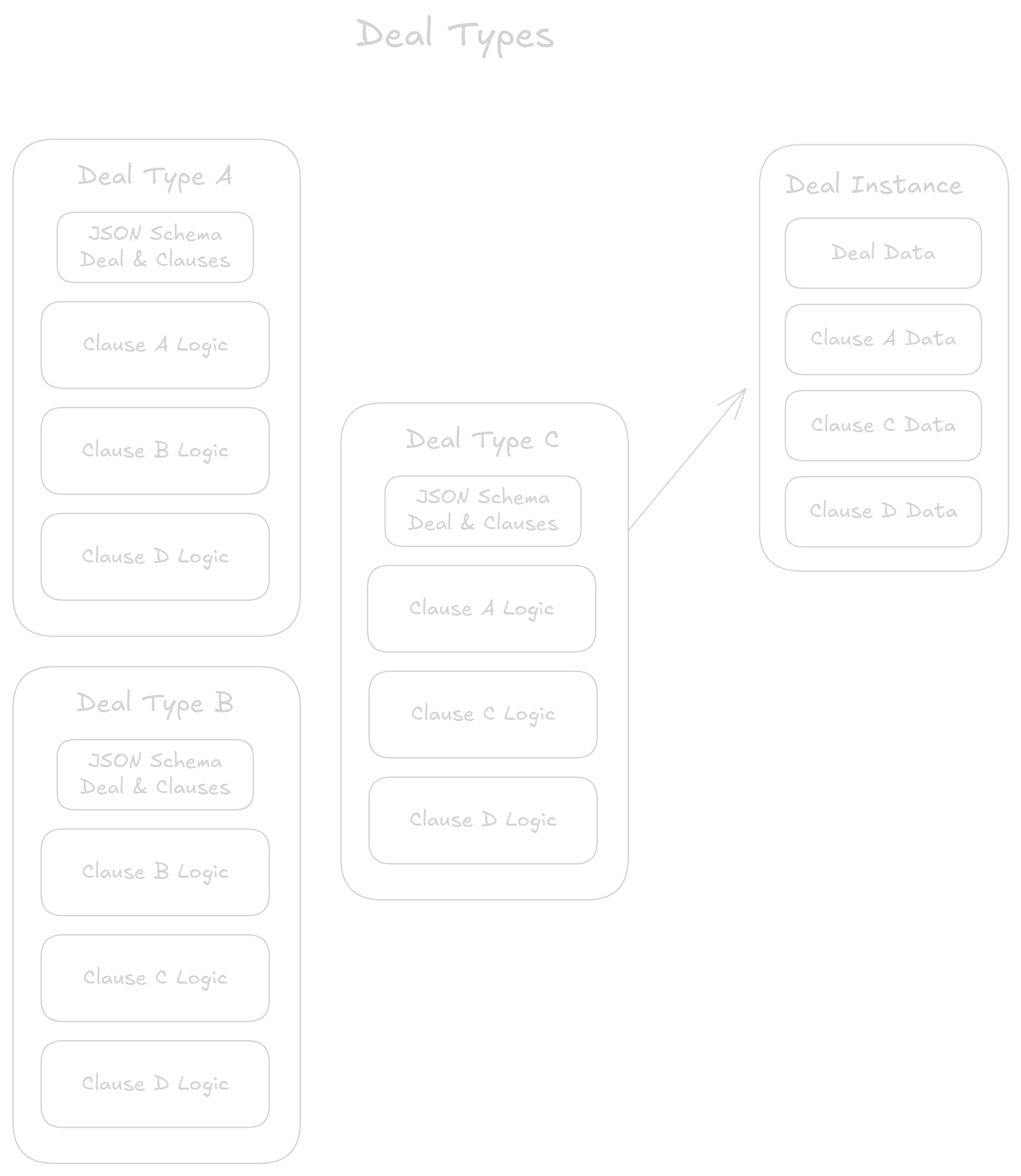

Clause Type Construct vs. Deal Type Construct

Detailed Data Model

classDiagram
direction LR

%% =========================
%% Catalog (Abstract / Reusable)
%% =========================
class ClauseTypeCatalog {
  +catalogId
  +name
}

class DealTypeCatalog {
  +catalogId
  +name
}

class DealType {
  +dealTypeId
  +name
  +description
}

class DealTypeClause {
  +id
  +isRecommended
  +isRequiredForUI
  +displayOrder
}

class ClauseType {
  +clauseTypeId
  +name
  +description
}

class ClauseTypeVersion {
  +clauseTypeVersionId
  +versionNumber
  +status: Draft|Published|Deprecated
  +inputSchemaRef
  +outputSchemaRef
  +logicRefOrEmbedded
}

class ClauseTypeDependency {
  +dependencyId
  +kind: Requires|Consumes|Aggregates
  +notes
}

ClauseTypeCatalog "1" --> "1..*" ClauseType : contains
ClauseType "1" --> "1..*" ClauseTypeVersion : versions

%% Type-level dependencies (abstract)
ClauseTypeVersion "1" --> "0..*" ClauseTypeDependency : defines
ClauseTypeDependency "1" --> "1" ClauseTypeVersion : from
ClauseTypeDependency "1" --> "1" ClauseTypeVersion : to

%% =========================
%% Deal Types (UI grouping only)
%% =========================
DealTypeCatalog "1" --> "1..*" DealType : contains
DealType "1" --> "1..*" DealTypeClause : includes for UI
DealTypeClause "1" --> "1" ClauseType : references

%% Optional: show that the UI can filter clause types for selection
%% (Association name communicates intent; no processing implication.)

%% =========================
%% Deals (Instantiated / Specific)
%% =========================
class Deal {
  +dealId
  +name
  +selectedDealTypeId  // UI selection reference
}

class DealVersion {
  +dealVersionId
  +versionNumber
  +branchType: Authoritative|Projected
  +isCurrentAuthoritative
  +createdAt
}

class ClauseInstance {
  +clauseInstanceId
  +clauseNameInDeal
  +status: Draft|Forecast|Confirmed|Override
}

class ClauseInstanceDependency {
  +dependencyId
  +kind: Requires|Consumes|Aggregates
  +notes
}

class ClauseSnapshot {
  +snapshotId
  +asOfTimestamp
  +stateJson  // full snapshot incl terms + computed outputs
  +stateKind: Draft|Forecast|Confirmed|Override
}

class Override {
  +overrideId
  +reason
  +overrideJson
  +createdAt
}

Deal "1" --> "1..*" DealVersion : has versions
DealVersion "1" --> "1..*" ClauseInstance : contains clauses
ClauseInstance "1" --> "1..*" ClauseSnapshot : produces
ClauseInstance "1" --> "0..*" Override : may apply

%% Pinning: instances use a specific catalog version for change control
ClauseInstance "1" --> "1" ClauseTypeVersion : pinned to

%% Instance-level dependencies (deal-specific)
DealVersion "1" --> "0..*" ClauseInstanceDependency : has
ClauseInstanceDependency "1" --> "1" ClauseInstance : from
ClauseInstanceDependency "1" --> "1" ClauseInstance : to

%% UI reference only: deal indicates which deal type was chosen
Deal "0..1" --> "1" DealType : selected for UI

Clause Boundary

flowchart LR
  subgraph DV[Deal Version - Authoritative or Projected]
    subgraph CI[Clause Instance - Merchandising Share]
      IN[Incoming Full State JSON<br/>Negotiated terms<br/>Actuals or estimates<br/>Prior computed values]
      DEP[Dependency Snapshots JSON<br/>From required clause instances]
      OVR[Override JSON<br/>User-provided values and reason]
      VAL[Validate<br/>JSON Schema and field rules]
      RULES[Evaluate<br/>Deterministic clause rules]
      OUT[New Full State JSON<br/>Updated terms and values<br/>Amount due and audit breakdown<br/>Status Draft Forecast Confirmed Override]

      IN --> VAL --> RULES --> OUT
      DEP --> RULES
      OVR --> RULES
    end
  end

  EXT[External inputs<br/>Actuals estimates changes] --> IN
  OTHER[Other clause instances<br/>Required dependencies] --> DEP
  OUT --> STORE[Snapshot store<br/>Version history]
